Nokia C1-00 LCD Blank Display Ways Jumpers Problem Solution

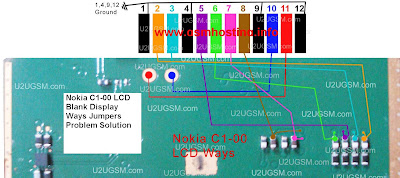

Nokia C100 lcd problem,white display problem,blank display and no light in lcd display of nokia C100 can be solve with a few steps that are given in this post bellow is the diagram of nokia C100 to solve lcd problem in it.
In diagram above you can see there are different color lines and these are identifying the path of lcd prints.lcd pins are counted in picture from left to right as 1,2…12 and these prints can be check with a multi meter if any of them is broken or any component is broken you can make jumper to the points that are shown in picture and a big round point shows here you can make jumper and these are test points for lcd display blank display problems.
